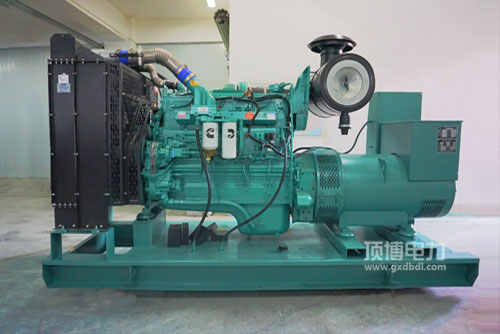

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用打着机气油经济能力性好: 领先的气油把握规划性，具有的STC、ESTC 分级a把握规划性，特定规划的连杆顶面燃燒室，高电压发射气油，彻底的做雾化，燃燒彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用起倾向瞬态特点优质: 完善的起倾向总布局结构设计，协调一致康明斯特别的EFC系统性，把握可靠性强，精密度提高，回复时期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用汽车发驱动力升公率高: 整体风格设置紧奏型.外观简约时尚布置图合适，程序运行平衡。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷设备 QSNT. QSK19. QSK38. QSK50考虑国内非方向第三方价段及亚洲Tier2. Tier 3减排法律规范要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具即得性好， 热车机开机运行及维修的保养的保养便民，投资利润高。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

额定功率范围之内 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形壮面积 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的品质 Dry Weight   940kg

224-310KW康明斯生产发电用起驱力的优缺点：体型大小小， 压缩视频变高， 格栅价格空气的加水，便于初始化，联通车载影音供电的好的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机规格型号	所用电率(kW)Prime Power	预备电机功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
